FP63, FP66 and FP68 [sanitary (single stage) centrifugal pump, up to 2.2 kW]

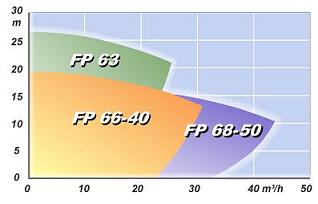

The Packo FP63, FP66 and FP68 pumps are small, single stage, stainless steel centrifugal pumps. They offer good ＆#118alue for money, combining a sanitary design in a modular and functional construction. This range is limited to 45 m³/h / 200 US.GPM - 18 m / 60 ft - 2.2 kW / 3 HP.

Perfectly cleanable

Stainless steel 316L

• All wetted parts are stainless steel AISI 316L.

·         Pump casings are made of cold-rolled plate: 100% non-porous and extremely smooth.

·         Impellers are investment cast that receive follow-up treatment.

Electropolished

All stainless steel parts in contact are electropolished as final surface treatment.

• This leads to an extremely low microroughness with a highly improved resistance to adhesion resulting in excellent ease of cleaning and the ultimate bateriological purity.
• Electropolishing also offers a highly improved corrosion resistance due to the higher percentage of noble materials chromium and nickel at the surface.

Crevice free design

The crevice-free design of all parts in contact - pump casing, back plate, impeller and seals - in combination with the optimal internal turbulence fully meets today's requirements for hygienic duties.

Functional design

• Open impeller with following advantages: low NPSH-＆#118alues, excellent air-handling, non-clogging, no axial stress on motor bearings, low pressure in seal cavity: extended seal life.
• A wide range of seal types, configurations and material combinations is available.

·         Motors are according to the IEC or NEMA standard. The pump can be factory fitted or subsequently changed to have motors with special characteristics (explosion proof, special voltage, special dimensions, integrated frequency converter, etc.).

·         Stainless steel motor bases and shrouds are available.

Field of application

• The Packo FP66 and FP68 pumps are mainly used in the food and processing industries.

·         Some actual applications are: milk, egg, soya, beer, wort, wine, fruit juices, soft-drinks, alcohol, yeast, starch, vegetable and ethereal oils, sugar solutions, brine, blood, light chemicals, solvents, detergents, water, CIP-solutions, etc.

·         The range is limited to 45 m³/h / 200 US.GPM - 24 m / 120 ft - 2.2 kW / 3 hp.
