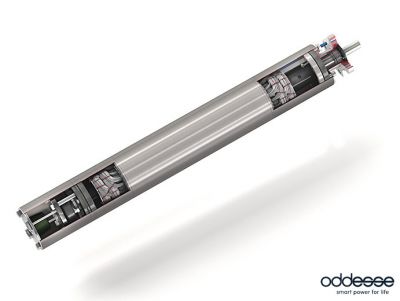

SUBMERSIBLE MOTORS
Models: po-mo/po-moh
APPLICATIONS
- Drive motors connected to deep well pumps for water delivery
- Pump drive for applications with special requirements, such as in mining, utilisation of geothermal energy as well as in offshore and marine technology
- Drive motors for all submersible motor pumps with connection dimensions according to NEMA standards or international standards, respectively
ADVANTAGES
- Motor performance and efficiency are best in class on a global level
- Operate in both directions of rotation
- Easy handling, maintenance-free operation and long service life
- Service-friendly modular design enables the exchangeability of parts and leads to a small amount of stock
- Fully recyclable motors
- Environmentally sound design thanks to the use of physiologically inert materials, great energy utilisation and high resistance to corrosion
- Comprehensive service network
EXECUTIONS
- Three-phase asynchronous motors for 50 or 60 Hz and voltages up to 1,000 V
- Water-filled motors with rewindable stators, dynamically balanced and with high resistance to thermal stress
- High-quality thrust bearings that operate in both rotation directions and possess a high load-bearing capacity
- Water-lubricated radial bearings for a horizontal and vertical motor application
- Windings for temperatures up to 80° C of the pumped medium available
- Speed regulation between 30 and 60 Hz via frequency converter possible
- High-quality materials for application in service, industrial and seawater
ACCESSORIES
- Extensive mechanical, electrical and electronic accessories
PERFORMANCE RANGE (AT 50 HZ)
- Up to 45 kW/60 HP with 6" motors
- Up to 132 kW/175 HP with 8" motors
- Up to 220 kW/300 HP with 10" motors
- Up to 400 kW/550 HP with 12" motors
|
