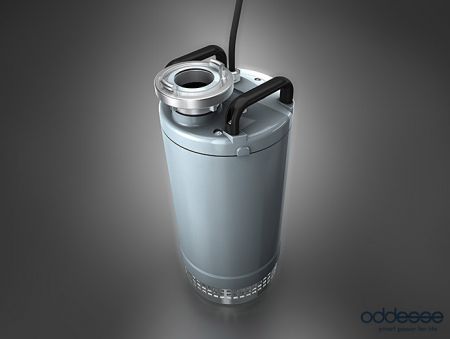

DRAINAGE PUMPS
Models: po-Söffel / po-Söffel X
APPLICATIONS
- Dewatering in the construction industry and in mining
- Keeping pits and soakaways dry
- Disaster control and by fire brigades
- Water supply in industry and agriculture
- Pumping dry of flooded rooms
- Irrigation and drainage of municipal, garden and domestic areas
- Clean or abrasive water containing solid admixtures with particle sizes up to 35 mm
- Max. density: 1,100 kg/m³
- Delivered medium temperature: up to 60 °C, containing
ADVANTAGES
- For mobile use
- Low weight
- Slim design
- Fully submersible
- Monitoring not required for continuous operation
- Position-independent operation
- Environmentally friendly thanks to biodegradable sealing liquid
- Long maintenance-free running periods
- Long service life
- Wear-resistant, service-friendly
- Slurping operation possible
- Tandem operation for high pressures
EXECUTIONS

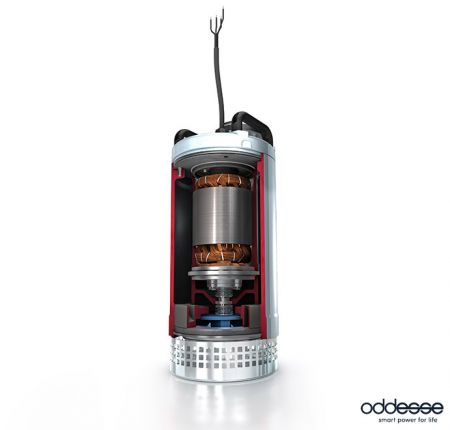

- Submersible, single-stage centrifugal pumps
- Motor compartment sealing via two high-quality mechanical seals
- Ball bearings with long life grease lubrication
- Motor cooling through pumped medium that flows around it
- Available with motor protection
- Automatic level regulations is optional
- Pressure port with quick-release coupling, flange, hose nozzle or Whitworth thread
- High-quality materials for application in service, industrial and seawater
ACCESSORIES
- Extensive mechanical, electrical and electronic accessories
PERFORMANCE RANGE
- Delivery volume Q = ... 450 m³/h
- Delivery height H = ... 65 m
|
