| 泵类 >> Oddesse >> Sewage pumps

SEWAGE PUMPS

Models: ORCUT / po-w

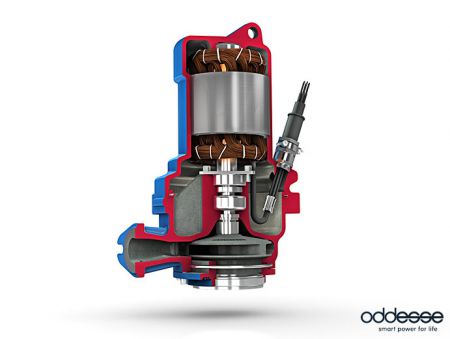

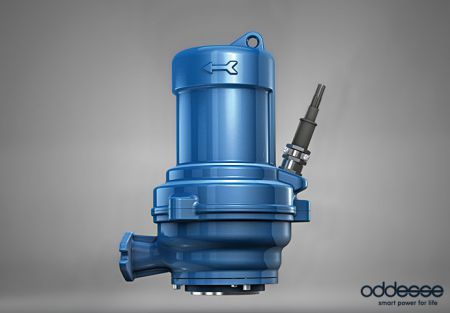

The ORCUT TMS, TES, ES and KM grinder pumps are manufactured by ORPU Pumpenfabrik GmbH, an oddesse subsidiary in Oranienburg. These pumps are characterised by a tried-and-tested, effective multiple-grinder system and are operated with motors of efficiency class IE2.

APPLICATIONS

Delivery of raw and sewage water with solid components at purification plants and pump stations
Local drainage, dewatering and service water removal
Delivery and breakup of contaminated dirty and sewage water, primarily in pressure drainage applications
Homogenisation of the delivered medium
Especially suitable for membrane purification plants on land or at sea

ADVANTAGES

Available in standard and explosion-proof versions

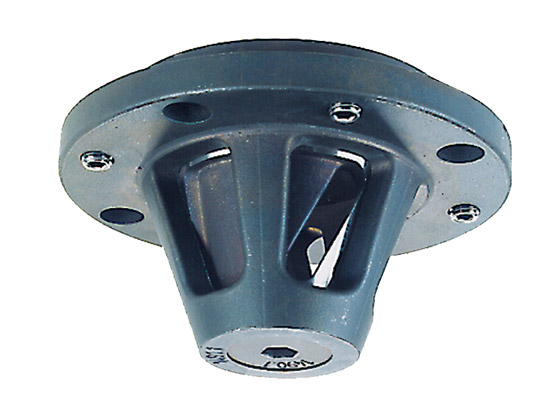

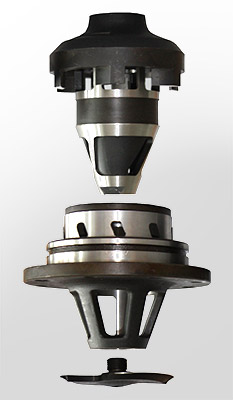

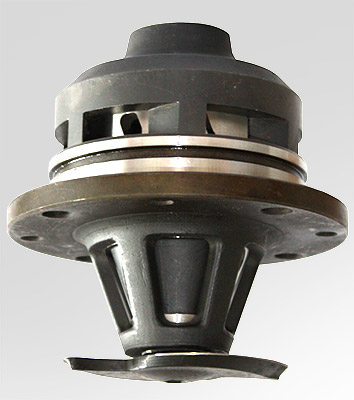

Blockage-free operation, either through the use of a patented cutting system
or by ensuring the passage of large particles
Stationary or mobile use
Wet or dry installation
DIN flange of sizes DN 32 through DN 150 for PN 6 and PN 10 can be used
Spiral hose can be connected
Comprehensive accessories
Highly efficient
Cost-efficient installation
High operating safety
Long service life
Effluent containing fibres and solids, faeces
Delivered medium temperatures up to 40 °C
Comprehensive service network

EXECUTIONS

Single-stage centrifugal pumps, suitable for wet, dry and mobile set-up
Single-channel impeller or vortex impeller
Available with cutting system
Single-phase or three-phase motor, protection level IP 68
Explosion-protection possible
Motor sealing via high-quality mechanical seals

ACCESSORIES

Extensive mechanical, electrical and electronic accessories

PERFORMANCE RANGE

Delivery volume Q = … 520 m³/h
Delivery height H = … 60 m
Rated wattage P = … 26 kW
