• Nominal diameters up to DN 05. Good flow rates even with soiled media
• Diaphragm made of PFA. High media resistance. Reliable and durable
• Sealing principle: diaphragm with 90° ring made of PTFE. High tightness even with soiling
• Design with no dead volume. Ideal with the connectors in the EM-TECHNIK modular system without dead volume
• 2/2-way and 3/2-way versions available
• Any installation position. Range of possible applications

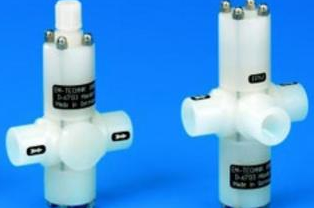

The Series 5 diaphragm valves can be used in practice both as shut-off fittings and also as safety valves. Due to the design of the special diaphragm, these valves feature high reliability and durability. The nominal diameters up to DN 05 ensure a good flow rate even with soiled media. Two variants are available: The Series 5B diaphragm valve is operated manually.
The Series 5P diaphragm valves are operated pneumatically and are therefore particularly suitable for use in system and process circuits for interrupting or redirecting the medium, e.g. in the event of the failure of the compressed air supply.
