SCHMITT-Centrifugal Pumps T and TE range
技术性能：
1、泵体制造材料PVDF（聚偏二氟乙烯）、PP(聚丙烯)或者不锈钢
2、工作温度 <150℃
3、扬程 <30m
4、流量 < 250 l/min
5、自吸能力一般
6、管道采用螺纹连接方式
7、模块化结构易于部件更换维修
8、驱动单元适用于不同电压和频率
9、适用于有防爆需要的使用环境
行业应用：
1、 排水设施
2、 电解池
3、 大型食品加工
4、 气体过滤和废气净化
5、 实验室
技术优势：
1、 浮动传动轴内置，无轴承或支撑结构，可以进行干运行
2、 安装、拆卸方便
3、 广泛的使用适用性
4、可以满足特殊电压、频率或者特殊保护措施的设计要求
|
型号 |
流量（Max） |
扬程（Max） |
电机 |
排放口连接 |
液下深度 |
|
|
l/min |
m |
kw |
NB |
MT |
mm |
|
T 100 |
50 |
7 |
0.18 |
15 |
1" |
200 |
|
T 115 |
75 |
10 |
0.25 |
20 |
1 1/4" |
200-300-400 |
|
T 130 |
115 |
13 |
0.55 |
20 |
1 1/4" |
200-300-400 |
|
T 150 |
155 |
16 |
0.75 |
20 |
1 1/4" |
300-400-500 |
|
T 170 |
220 |
23 |
1.50 |
25 |
1 1/2" |
400-600-800 |
|
T 190 |
250 |
30 |
2.20 |
25 |
1 1/2" |
400-600-800 |

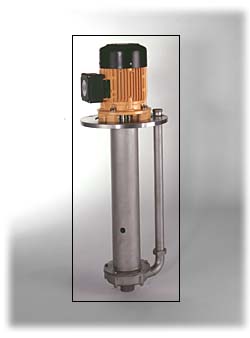

Vertical sump pumps
The impeller in this range of pumps is driven by extended, free-moving shafts. This method of construction eliminates the need for bearing and shaft sealing.
The temperature threshold of the materials used in the pumps´construction are as follows:
95°C max. for PVDF
80°C max. for PP
150°C max. for stainless steel
These models are available with a choice of electric drive motors: three-phase or single-phase and three-phase explosion protection or flameproof enclosure drives. All drives can be adapted to work off any voltage or frequency. The characteristic curves of these models have been measured using three-phase double pole 50 Hz motors, with water as a test medium, at a temperature of 20 °C.
Advantages:
- No risk of damage from fluid depletion
- The pumps in this range come equipped with a flange that allows them to be easily mounted on tanks, containers etc.
Some uses and applications:
- Exhaust filtering, gas purification in laboratories
- Sump draining
- Galvanic baths
- Large-scale bakeries
|
