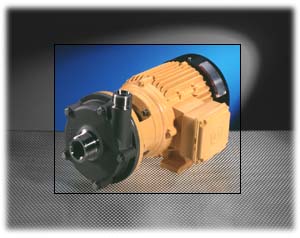

SCHMITT-Centrifugal Pumps UP range

All parts in contact with the transmitted medium are manufactured from stainless steel (1.4581).
Suitable for the transmission of media at temperatures of up to 150°C.
The impellers of the pumps in this range are shaft-driven. Internal slide rings provide effective sealing for the shaft passage. The mechanical seal in this range can be manufactured from a variety of different materials, depending on the conditions in which the seals are required to operate.

Sliding materials:
Carbon, Ceramics or SiC
Elastomers:
FKM (i.e. Viton®), EPDM, FEP or Kalrez®

This series can be equipped with a double-action mechanical seal, (type UP-DO).
The double-action mechanical seal requires a sealing fluid to be supplied.
These models are available with a choice of electric drive motors: three-phase or single- phase and three-phase explosion protection or flameproof enclosure drives. All drives can be adapted to work off any voltage or frequency.
The characteristic curves of these models have been measured using three-phase double pole 50 Hz motors, with water as a test medium, at a temperature of 20°C.

Advantages:

• Suitable for the transmission of hot and corrosive media
• Can be easily sterilized

Some uses and applications:

• Petroleum industry
• Paper manufacturing
• Food processing
• Fat extraction baths
• Heat exchangers
