SCHMITT-Centrifugal Pumps MPN range

技术性能：

1、  泵体制造材料PVDF（聚偏二氟乙烯）或者PP(聚丙烯)

2、  陶瓷轴承或者碳化硅轴承

3、  工作温度 <95℃

4、  扬程 <32m

5、  流量 < 380 l/min

6、  自吸能力一般

7、  管道采用螺纹连接方式

8、  模块化结构易于部件更换维修

9、  驱动单元适用于不同电压和频率

10、适用于有防爆需要的使用环境

行业应用：

1、  医疗设施

2、  实验室设备

3、  电镀行业应用

4、  晶圆制备和微晶片制造

5、  印刷电路板制造

6、  水处理和污水处理

技术优势：

1、  模块化设计便于装配、拆卸和维修

2、  无旋转密封结构，可靠性高

3、  与介质接触的零部件无金属材质

4、  很少有因磨损原因产生的维护需求

5、  高耐化学腐蚀性

6、  广泛的使用适应性

7、  可根据特殊使用需要进行改造和修改

技术参数：

型号	流量（Max）	扬程（Max）	电机	吸入口连接		排放口连接		重量
	l/min	m	kw	NB	MT	NB	MT	kg
MPN 80	35	4	0.18	10	3/4”	10	3/4”	4.7
MPN 101	80	7	0.18	15	1”	15	1”	4.5
MPN 115	90	10	0.25	15	1”	15	1”	5.3
MPN 130	140	14	0.55	20	1 1/4”	15	1”	8.6
MPN 150	220	18	1.10	25	1 1/2”	20	1 1/4”	15.4
MPN 170	320	26	2.2	32	2”	25	1 1/2”	23.9
MPN 190	380	32	3	32	2”	25	1 1/2”	29

尺寸说明

型号	h	h1	l	l1	l2	g	g1	p	a	b	e	f	c	φs	m
MPN 80	56	110	290	123	158	111	164	113	71	90	90	112	8	6	25
MPN 101	56	118	297	131	165	111	164	113	71	90	90	112	8	6	31
MPN 115	63	134	335	145	185	126	156	126	80	100	97	116	6	7	37
MPN 130	71	150	372	153	203	139	194	140	90	112	108	140	10	8	42
MPN 150	80	170	415	178	228	157	209	159	100	125	125	160	11	10	47
MPN 170	90	190	495	222	277	177	235	180	125	140	152	180	14	11	58
MPN 190	100	211	535	235	295	198	255	200	140	160	175	205	14	112	65

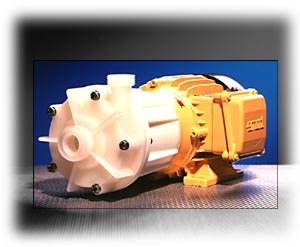

Standard suction, magnetically-coupled pumps.

The pump casing of the MPN range is hermetically sealed. The impeller is powered by magnetic force, eliminating the need for a direct connection to an external motor.
Parts in contact with the fluid medium are manufactured from solid PVDF or PP.
These models come equipped with low-maintenance, hydrodynamic gliding-surface bearings, composed of either PTFE and ceramics components, or SiC components, and incorporate high-quality permanent magnets into their design.
PVDF pumps may be used for medium temperatures of up to 95°C; PP pumps for temperatures of up to 85°C.
These models are available with a choice of electric drive motors: three-phase or single-phase and three-phase explosion protection or flameproof enclosure drives.
All drives can be adapted to work off any voltage or frequency.
The characteristic curves of these models have been measured using three-phase double pole motors, with water as a test medium, at a temperature of 20°C

Advantages:

• Completely proofed against leaks, as no rotating parts need to be sealed off
• Low maintenance, due to wear-resistant hydrodynamic slide bearings
• High chemical resistance to corrosive media, due to the minimum number of materials used in the pumps` manufacture
• Universally adaptable

Some uses and applications:

• Wafer production in the micro-chip industry
• Printed circuit board (PCB) manufacture
• Water treatment and sewage systems
• Electro-plating applications
• Laboratory facilities
• Medical facilities
